      SSO: MobilityGuard Reverse Proxy

      EveryonePrint supports authentication using the MobilityGuard unified access management system, reverse proxy and single-sign-on (SSO) solution.

      The following guide outlines the simple steps to configure MobilityGuard as SSO with an EveryonePrint server.

      Check out the MobilityGuard Unified Access Management System.

      Resolution:

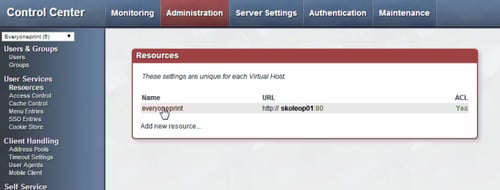

      1. Open MobilityGuard Control Center -> Administration -> User Services -> Resources, click Add new resource.
        115004305169-SSO-EveryonePrint-and-MobilityGuard-reverse-proxy_kb866011_1

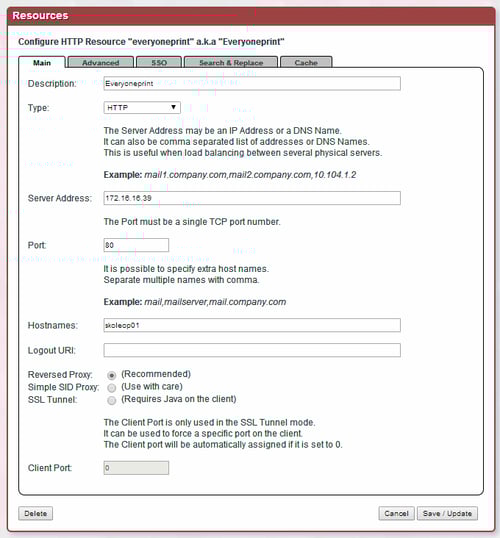

      2. In the Main tab, configure properties such as description, hostname and internal server address.
        115004305169-SSO-EveryonePrint-and-MobilityGuard-reverse-proxy_kb866011_2

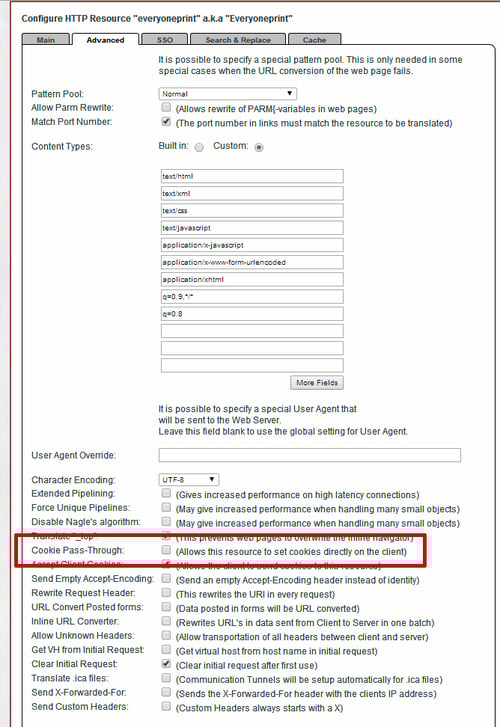

      3. In the Advanced tab, uncheck Cookie Pass-Through to ensure that clients are logged out when ending their sessions in MobilityGuard.
        115004305169-SSO-EveryonePrint-and-MobilityGuard-reverse-proxy_kb866011_3

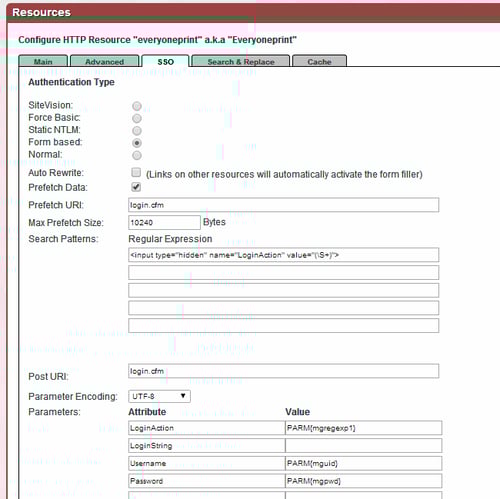

      4. In the SSO tab, configure as below, so credentials from MobilityGuard are passed into the EveryonePrint login form automatically and transparent to the end user clients.
        115004305169-SSO-EveryonePrint-and-MobilityGuard-reverse-proxy_kb866011_4
      5. Save, activate and reload MobilityGuard configuration, then access the hostname specified; users will now be prompted for login by the MobilityGuard service, and once authenticated, be passed in an authenticated state to the EveryonePrint server.
