      Network Connectivity: How to Check If Ports Are Open

      When setting up a SAFEQ environment with any product, you may need to check network connectivity from one endpoint to another.

      Applies to the below list of products and versions:
      YSoft SAFEQ 5
      YSoft SAFEQ 6
      YSoft SAFEQ Cloud

      Network connectivity and open ports are the foundation of a stable and functional SAFEQ environment. They enable efficient communication between components, ensure secure data transmission, and play a vital role in maintaining a positive user experience. Administrators and IT teams must prioritize these aspects during the setup and ongoing maintenance of the SAFEQ system to guarantee its reliability and effectiveness.

      When configuring the SAFEQ environment with any product, it's important to verify network connectivity between different endpoints.

      For example:

      • MFD subnet > Server or Server > MFD subnet
      • End user PC with Client > Server
      • Server > Server

      To see a list of required ports for our products see these articles from the documentation:

      Resolution

      We suggest utilizing one of the following methods.

      Option 1 - PowerShell Test Network Connection function

      1. Open PowerShell as an administrator
      2. Run a command with the structure tnc <IPaddress or Hostname> -port <port number>

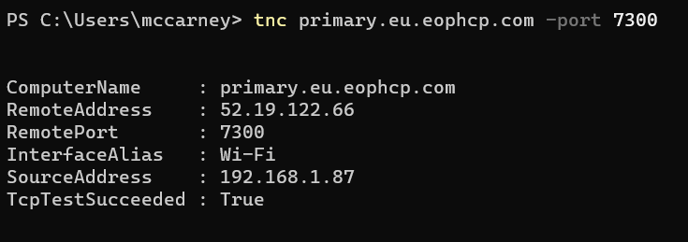

      If the test is successful, you will see a result like this.

      Network Connectivity_KB_01

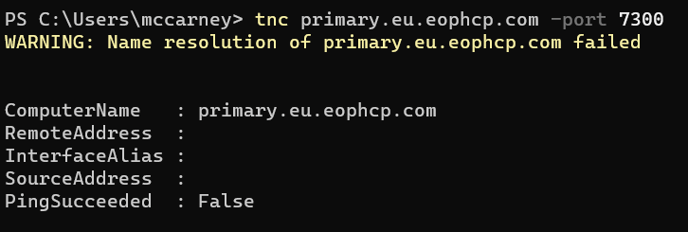

      If the test fails, you will see a result like this.

      Network Connectivity_KB_02

      Option 2 - Port Quiz

      This option is helpful for Linux servers to verify outbound ports; please refer to the instructions below.

      You can visit Portquiz for instructions or use one of the commands listed below, depending on your operating system.

      Windows  PowerShell

      # For Windows PowerShell users
      Test-NetConnection -InformationLevel detailed -ComputerName portquiz.net -Port 8443

      Linux

      $ nc -v portquiz.net 8443
      Connection to portquiz.net 8443 port [tcp/daytime] succeeded!
      $ curl portquiz.net:8443
      Port test successful!
      Your IP: 109.145.45.30
      $ wget -qO- portquiz.net:8443
      Port test successful!
      Your IP: 109.145.45.30

      Windows Telnet

      $ telnet portquiz.net 8443
      Trying ...
      Connected to portquiz.net.
      Escape character is '^]'.
